10KW Inverter Test System Eol Test Equipment IEEE1547 Standard

Name: 10KW Inverter Test System Eol Test Equipment IEEE1547 Standard
Brand: Dongguan Chuangrui New Energy Co., Ltd
SKU: Topfer3400
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Topfer

Model Number: Topfer3400

Payment & Shipping Terms

Minimum Order Quantity: one set

Price: to be discussed

Packaging Details: wooden crate

Delivery Time: 6 to 7 weeks

Payment Terms: T/T

Supply Ability: 10 sets /60 days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                10KW Inverter Test System, Eol Inverter Test System, Inverter eol test equipment


Color:	Gray	Power Output:	1000W
Protection:	Overload/Overheat/Short Circuit	Efficiency:	≥ 95%
Communication Interface:	RS485/RS232	Control Mode:	Manual/Automatic
Cooling Method:	Forced Air Cooling	Display:	LCD Screen
Input Voltage:	AC 220V

Color:	Gray
Power Output:	1000W
Protection:	Overload/Overheat/Short Circuit
Efficiency:	≥ 95%
Communication Interface:	RS485/RS232
Control Mode:	Manual/Automatic
Cooling Method:	Forced Air Cooling
Display:	LCD Screen
Input Voltage:	AC 220V

Product Description

10KW Inverter Test System / Safe, Efficient, And Highly Stable 10KW

Introduction:

The Inverter Test System is specifically designed for testing the electrical characteristics of various photovoltaic inverters and new energy products, as well as islanding protection tests. It is an essential testing tool for production workshops, laboratories, installation and commissioning, and research and development. TheTest System features specially developed and optimized standard test projects for photovoltaic inverters, meeting the preliminary electrical testing requirements of IEEE1547, 1547.1, UL1741, and China's National Standard GB/T19939.

Features:

An open hardware platform that allows for the addition of various testing devices based on actual test requirements.
Supports comprehensive testing of new electrical energy technologies such as islanding effect, photovoltaic inverters, and communication power supplies.
Supports system composition of local area networks and remote network scheduling and control.
Meets the relevant requirements of IEC62116 "Test Methods for Islanding Prevention for Photovoltaic Inverters Used in Utility Interfaced Systems."
An open software platform that can be expanded with various new test projects and functions based on customer testing requirements.

Topfer3100 Photovoltaic Inverter Testing System Test Items:

Test Items	Test Items
1.Leakage current sensor calibration	2.PV/BUS voltage calibration
3.Mains voltage (UW, UO, WO) calibration	4.Inverter voltage calibration
5.PV current calibration / inverter current calibration	6.Efficiency, power factor, harmonic testing
7.DC undervoltage test	8.DC overvoltage test
9.AC over/undervoltage test	10.AC overfrequency
11.AC underfrequency	12.Islanding protection
13.FRT (instantaneous voltage drop)	14.FRT (momentary power failure)
15.FRT (variation of cycle frequency)	16.Supply recovery blocking function
17.Stand-alone operation current calibration	18.Stand-alone operation voltage/frequency test
19.Islanding protection	20.FRT (instantaneous voltage drop)
21.FRT (momentary power failure)	22.FRT (variation of cycle frequency)
23.Supply recovery blocking function	24.Stand-alone operation current calibration
25.Stand-alone operation voltage/frequency test	26.Recovery grid connection protection test
27.Automatic switch on/off test	28.THD measurement
29.Insulation strength	30.Input characteristic test
31.Stability test	32.Special function test (customizable)

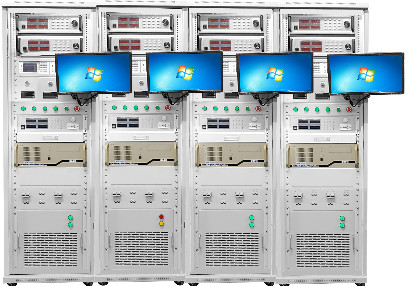

10KW Inverter Test System Eol Test Equipment IEEE1547 Standard 0
