ODM Automated ATE Inverter Test System Instruments Current Power

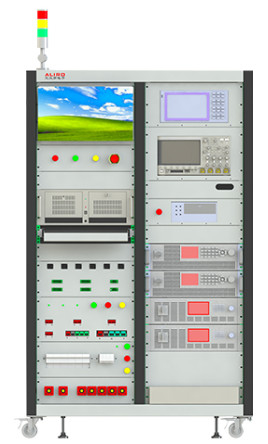

 Automated Energy Storage Inverter Test System / Safe, Efficient, And Highly Stable

Introduction:

     The testing system is primarily used for functional verification of energy storage inverters at the production stage. The system integrates equipment such as battery simulators, photovoltaic simulators, regenerative grid simulators, power analyzers, oscilloscopes, and other instruments. It is compatible with tests on string inverters of the same power rating. The main test items include AC/DC calibration, protection function testing, power quality testing, communication protocol testing, efficiency testing, and off-grid/on-grid switching and other energy storage function tests

Features:

1. Modular design, integrable with a variety of instruments and equipment.
2. Comprehensive test items.
3. Compatible with string inverter testing.
4. Meets different safety regulation testing requirements.
5. One-click testing via scanning code, the system can connect to the MES syst

Automated Energy Storage Inverter Test System Test Items:

DC Charging Port: Voltage, Current, Power

AC Output Port: Voltage points collection

Current, Power, Frequency, Power Factor (PF), Overload, Short Circuit

Standard USB Port: Output Voltage, Output Current,

Voltage Ripple, Short Circuit, Overcurrent Car Charger

Output Port: Output Voltage, Output Current, Voltage Ripple, Short Circuit, Overcurrent

QCUSB Port: Output Voltage (complying with QC protocol), Output Current, Voltage Ripple, Short Circuit, Overcurrent

TYPE-C Port: Output Voltage (fast charging protocol), Output Current, Voltage Ripple, Short Circuit, Overcurrent
