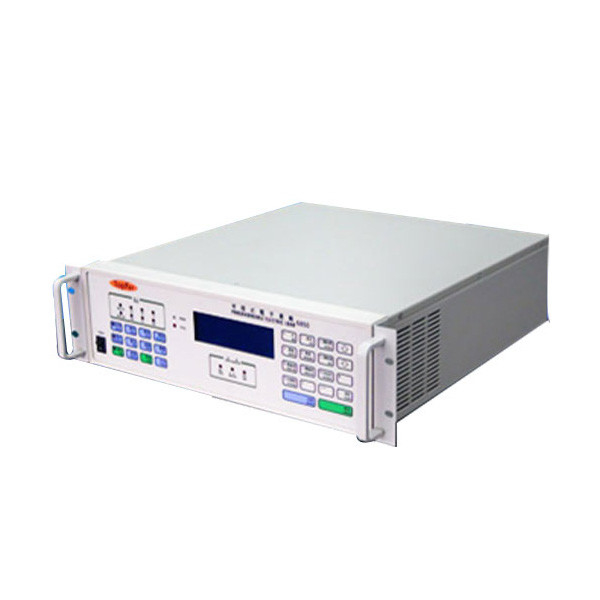

CC CR Programmable Electronic Regenerative DC Load Device 100V 300W

Name: CC CR Programmable Electronic Regenerative DC Load Device 100V 300W
Brand: Dongguan Chuangrui New Energy Co., Ltd
SKU: TopFer 6800
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Topfer

Model Number: TopFer 6800

Payment & Shipping Terms

Minimum Order Quantity: one set

Price: to be discussed

Packaging Details: wooden crate

Delivery Time: 1 to 2 weeks

Payment Terms: T/T

Supply Ability: 10 sets /20 days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                CC CR regenerative dc load, 300W regenerative dc load, 300W electronic load device


Power:	300W	Voltage:	100V
Range:	0-1A/0-50A	Resolution:	12 Bits
Accuracy(250C):	0.2%+2% F.S. @If.s=1A	Min.operating:	1.0V @1A/3.0V @50A

Power:	300W
Voltage:	100V
Range:	0-1A/0-50A
Resolution:	12 Bits
Accuracy(250C):	0.2%+2% F.S. @If.s=1A
Min.operating:	1.0V @1A/3.0V @50A

Product Description

The programmable DC electronic load, TopFer 6800, features fast testing speed and high efficiency

Product Features of Programmable DC Electronic Load TopFer 6800:

Fast testing speed and high efficiency.
Provides full-function testing for the 'power supply under test,' meeting both production quality management and R&D needs.
Accurately simulates various load states of the 'power supply under test,' such as static, dynamic, and transient conditions.
Accurately measures: DC voltage, peak-to-peak ripple, RMS ripple, voltage change rate, and transient time.
STN blue, 240*60 dot matrix LCD display.
Includes a Chinese manual operation mode.
CV, CC, CR test modes are available to meet constant voltage testing requirements for adapters, chargers, PC power supplies, etc

Specifications:

Specifications
	Max.power	Max.voltage	Min.operating
	300w	100V	1.0V @1A
			3.0V @50A
Load current	Range	Resolution	Accuracy(250C)
	0-1A/0-50A	12 bits	0.2%+2% F.S. @If.s=1A
			0.2%+0.7% F.S. @If.s=50A
	Tc	Overshoot
	50ppm/c	0.5%F.S
Load resistance	Range(If.s=1A)	Range(If.s=50A)	Resolution
	1.001-1000ohm	0.030-800ohm	12 bits
	Tc	Accuracy(250C)	Accuracy(250C)
	50ppm/0C	0.2%+2% F.S. @If.s=1A	0.6%+0.7% F.S. @If.s=50A
Slew rates	Range(If.s=1A)	Range(If.s=50A)	Resolution
	1-50mA/us	5-2500mA/us	12 bits
	Accuracy
	5%
Dynamic period	Range	Resolution	Accuracy
Dynamic period	4uS-10uS	1uS	1uS+100PPM
Timings	Range	Resolution	Accuracy
Timings	0-16sec/0-1000sec	256uS/25mS	1uS+100PPM
EXT.wave input	Range	Transfer ratio	Accuracy
	0-10V	0.1A/V @If.s=1A	0.2% @If.s=1A
		5.0A/V @If.s=50A	0.6% @If.s=50A
	Basic test NO.
	8
DC voltage	Range	Resolution	Accuracy
	0-10V/0-100V	14 bits	0.05% F.S @Vf.s=10V
			0.02%+0.05% F.S @Vf.s=100V
Pk-Pk ADC	Range	Resolution	Accuracy
	0-10V/0-100V	12 bits	0.05% F.S @Vf.s=10V
			0.02%+0.05% F.S @Vf.s=100V
	Freq.
	25Hz-20 KHz
Pk-Pk detector	Range	Resolution	Accuracy
	0-1V/0-10V	14 bits	1%+10mV
	Freq.
	25Hz-1000 KHz
RMS noise	Range	Resolution	Accuracy
	0-1V/0-10V	14 bits	1%+10mV
	Freq.
	25Hz-1000 KHz
Current	Range	Resolution	Accuracy
	0-1A/0-50A	14 bits	0.2%+2% F.S. @1A
			0.2%+0.7% F.S. @51A
Timing	Range	Resolution	Accuracy
Timing	0-16 sec	1 us	10us+100PPM
Constant Volbage	Range	Resolution	Accuracy
	1-50V	14 bits	0.07%+0.08% F.S @Vf.s=10V
			0.07%+0.08% F.S @Vf.s=100V
