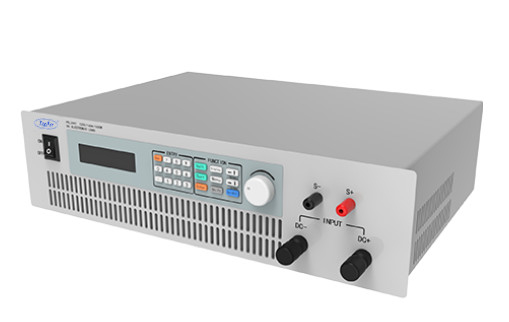

Single Channel Digital Programmable Electronic Load 1500W 32bit

Name: Single Channel Digital Programmable Electronic Load 1500W 32bit
Brand: Dongguan Chuangrui New Energy Co., Ltd
SKU: TDL-1500
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Topfer

Model Number: TDL-1500

Payment & Shipping Terms

Minimum Order Quantity: one set

Price: to be discussed

Packaging Details: wooden crate

Delivery Time: 1 to 2 weeks

Payment Terms: T/T

Supply Ability: 10 sets /20 days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Single Channel programmable electronic load, 32bit programmable electronic load, 1500W digital electronic load


Voltage:	0~120V	Current:	0~160A
Power:	1500W	Resolution:	1mA/1mV
Display Method:	LCD Display Panel	Color:	Gray

Voltage:	0~120V
Current:	0~160A
Power:	1500W
Resolution:	1mA/1mV
Display Method:	LCD Display Panel
Color:	Gray

Product Description

The direct-sales programmable electronic load allows setting of current rise and fall slopes

Introduction:

The single-channel programmable DC electronic load features an advanced 32-bit high-speed processor with DSP capabilities. It offers high precision (0.1% power measurement accuracy) and low power consumption. This device quickly and accurately calculates harmonic parameters of signals. It provides multiple remote communication interfaces including USB, Ethernet, GPIB, and RS232 to meet various user testing and communication needs.

DC Electronic Load Series:

Switchable between high range, low range, and automatic range settings.
Built-in memory function for automatic parameter saving.
Configurable current rise and fall slopes, with the fastest rise time reaching up to 50us.
Offers four operating modes: constant voltage, constant current, constant power, constant resistance.

Features:

Battery testing function
Built-in Buzzer alarm prompt function
Short simulation function
Remote compensation function
Intelligent fan control
Switchable between high range, low range, and automatic range settings
Built-in memory function for automatic parameter saving
LCD display panel provides users with a complete view of operating status
List sequence operation mode can simulate various load state changes

Specifications:

Model Function	TDL-1500
Voltage	0~120V
Current	0~160A
Power	1500W
Resolution	1mA/1mV
Display Method	LCD Display Panel
Test Functions	Dynamic (Trar), List.battery, short, constant voltage, constant current, constant power
