The power supply test fixture features stable functions and fast testing speed

The power supply test fixture features stable functions and fast testing speed

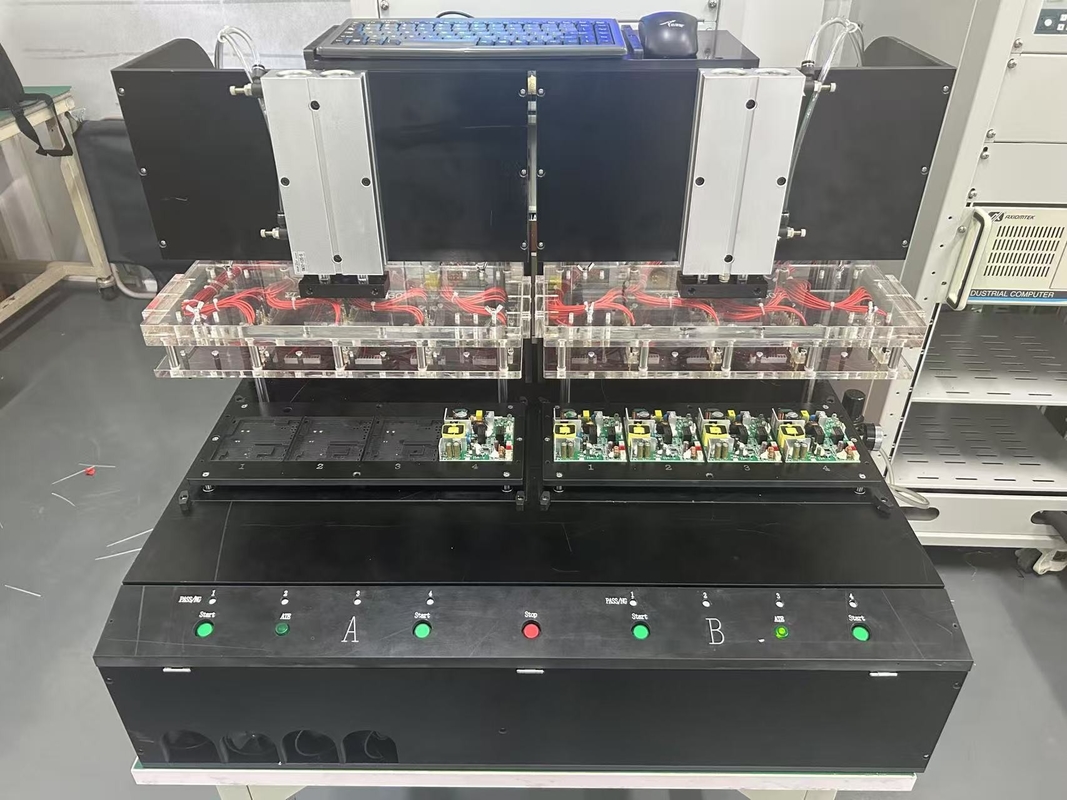

The TFX-200 series is a power supply test fixture specifically developed by Chuangrui Electronics for power supplies that require pin removal during testing:

●  Easy to operate, uninterrupted testing, high efficiency, reducing test time and labor costs.

● Suitable for testing various types of power supplies that require pin removal.

● Good internal electrical performance, especially suitable for stable output of various test indicators.

● Good internal mechanical performance, eliminating unnecessary interference.

● Suitable for various stages of power supply testing needs, accurately measuring results.

Economic practicality, quick replacement and flexibility:

• The main body and accessories can be separated. (The accessories are the automatic PIN fixture boxes for different products.)
• After the main body is connected to the system, if the main body of the object under test remains unchanged, the accessories can be replaced within 2 minutes, and the line transfer test of other products can be completed.
• A set of systems is equipped with a fixed fixture body, and different brake accessory boxes are provided according to different objects under test, which saves costs.
• The accessory box can be customized with the fastest PIN testing methods for taking, placing, and advancing and retreating according to the object under test.
• The fixture test items can change the test mode as needed.
• ATE& High-voltage Continuous Switching test
• It can be tested at high voltage separately
• It can be tested separately by ATE
