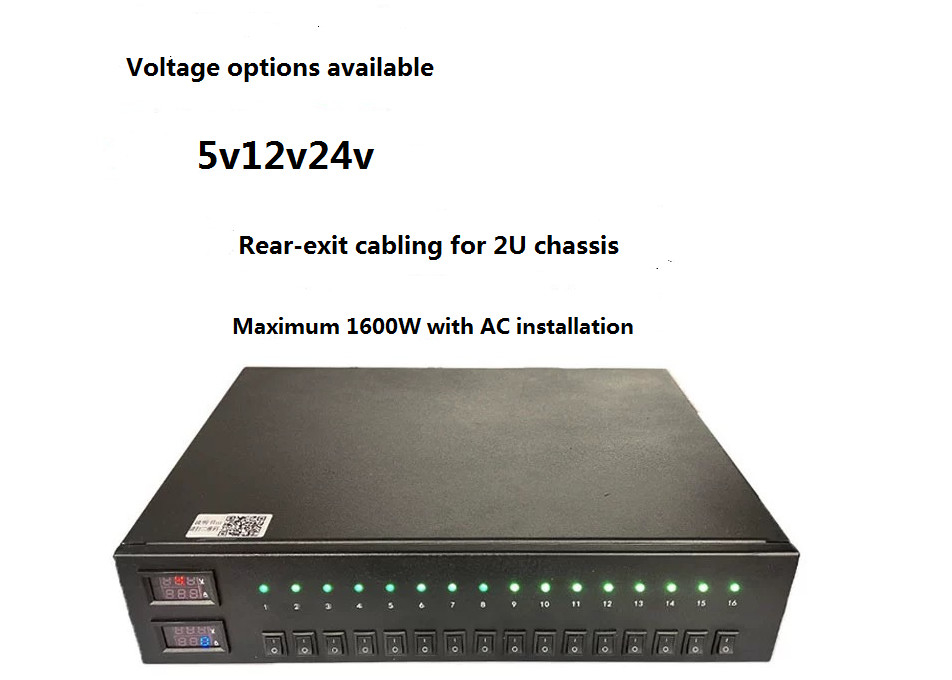

12V 24V Automated Test Fixture Centralized Ups Power Supply Rack

DC12V/24V centralized power supply rack with display screen monitoring

Detailed Specifications:

Iron box dimensions: 2U, 430mm length, 220mm width, 90mm

height AC input voltage range: AC90-AC260V, 60Hz

Output channels: 16 channels (adaptive 0-3A current/unlimited current option)

Overload protection: 105%-125% constant current limit

Overvoltage protection: 120%-145% shuts down o/p voltage, restart required for recovery Overvoltage protection: >110% Setting rise wait time: 1500ms/60ms/full load 10ms and 230VAC

Operating temperature: -40~+70°C

A DC12V/24V centralized power supply rack with a display screen monitoring system is an advanced solution designed to manage and distribute power efficiently in various applications, such as telecommunications, data centers, industrial automation, and more. Here’s a detailed overview of its components and functionalities:

Key Components:

1. Centralized Power Supply Rack:

   • Power Supply Unit (PSU): The core component that converts input AC or another DC source to a stable 12V or 24V DC output. It ensures a consistent and reliable power supply to connected devices.
   • Distribution Unit: Manages the distribution of power from the PSU to multiple output channels. This unit often includes circuit protection features like overvoltage, undervoltage, and overcurrent protection.
   • Battery Backup (Optional): Some systems include battery backup to provide uninterrupted power during outages or when the primary power source fails.

2. Display Screen Monitoring System:

   • LCD/LED Display Screen: Mounted on the front of the rack, this screen provides real-time information about the power supply status, including voltage, current, load percentage, and any faults or alerts.
   • Control Interface: Allows users to interact with the system, enabling them to adjust settings, view detailed diagnostics, and access logs. This interface can be a touchscreen or physical buttons, depending on the design.
   • Communication Ports: Often include Ethernet, USB, or RS232 ports for remote monitoring and control via network management software or other external devices.

Features and Functionalities:

1. Real-Time Monitoring:

   • Continuously displays key parameters such as output voltage, current, and power usage.
   • Alerts users to any abnormal conditions like overloads, short circuits, or temperature issues.

2. Remote Management:

   • Supports remote monitoring and control through network interfaces, allowing administrators to manage power supplies from a central location or via mobile devices.
   • Can integrate with broader building management or data center management systems for comprehensive oversight.

3. User-Friendly Interface:

   • Intuitive display and control interface make it easy to navigate and configure settings.
   • Provides detailed system information and historical data for analysis and troubleshooting.

4. Scalability and Flexibility:

   • Can be configured to meet specific power requirements and expanded as needed.
   • Suitable for various applications, from small telecommunications closets to large data centers.

5. Reliability and Safety:

   • Designed with multiple layers of protection to ensure safe and reliable operation.
   • Often includes redundant systems and failover mechanisms to maintain power continuity.

Applications:

• Telecommunications: Ensures reliable power for critical communication equipment.
• Data Centers: Supports server racks and networking equipment with stable power.
• Industrial Automation: Powers control systems and machinery with precise and monitored energy supply.
• Surveillance Systems: Keeps security cameras and recording equipment operational with minimal downtime.

In summary, a DC12V/24V centralized power supply rack with display screen monitoring offers a robust, efficient, and user-friendly solution for managing power in various critical environments. Its real-time monitoring, remote management capabilities, and high reliability make it an essential component for maintaining operational continuity and safety.
