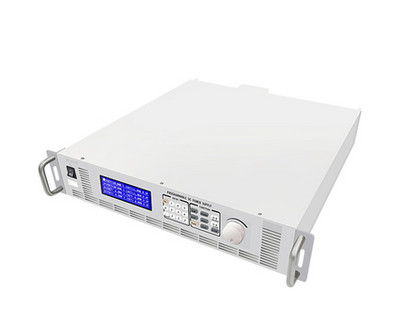

4000W 2U Variable Programmable Power Supply 485LAN Interfaces

Name: 4000W 2U Variable Programmable Power Supply 485LAN Interfaces
Brand: Dongguan Chuangrui New Energy Co., Ltd
SKU: TPD-360-30
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Topfer

Model Number: TPD-360-30

Payment & Shipping Terms

Minimum Order Quantity: one set

Price: to be discussed

Packaging Details: wooden crate

Delivery Time: 1 to 2 weeks

Payment Terms: T/T

Supply Ability: 10 sets /15days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                4000W programmable power supply, Variable programmable power supply, 485LAN variable dc power supply


Input Voltage:	190-265VAC	Remote Compensation:	5V MAX
Master-Slave Control:	Yes	Series Connection:	Up To 5 Units
Parallel Connection:	Up To 5 Units	Cooling Method:	Fan Cooling

Input Voltage:	190-265VAC
Remote Compensation:	5V MAX
Master-Slave Control:	Yes
Series Connection:	Up To 5 Units
Parallel Connection:	Up To 5 Units
Cooling Method:	Fan Cooling

Product Description

The output adjustment frequency of the programmable DC power supply can reach up to 20K

Dual and Quad Channel Output:

Independent isolated outputs, multiple units of the same model can be connected in series/parallel for unique testing functions.
Features include constant voltage, constant current, constant power, and precise voltage/current output, allowing users to choose freely according to their needs.

Product Features:

Wide voltage input range: 200-240VAC (input is 220VAC)
Compact size, high power: 4000W/2U
Capable of cascading up to 5 units in series/parallel with the same model
Function keyboard operation with an encoded knob
Gradual increase and decrease functions for voltage
Working modes: Free switch between CV and CC
Programmable to set multiple steps of output voltage
Protection against overvoltage, overcurrent, overpower, and overtemperature
Communication interfaces: RS232/485LAN/USB/GPIB
Communication protocols: Standard SCPI protocol

Application Areas:

Medical field
Electronics field
Research and development field
Telecommunications field
LED field
Home appliance field
Aerospace field
Automated testing field

Specifications table:

Model Functions	TPD-360-30 30V120A	TPD-360-60 60V90A	TPD-360-80 80V75A	TPD-400-80 80V60A
Input Voltage	190-265VAC	190-265VAC	190-265VAC	190-265VAC
Output Power	0-3600W	0-3600W	0-3600W	0-4000W
Remote Compensation	5V MAX	5V MAX	5V MAX	5V MAX
Master-Slave Control	Yes
Series Connection	Up to 5 units
Parallel Connection	Up to 5 units
Net Weight	13.5KG	13.5KG	13KG	13KG
Dimensions(WHD)mm	483101560	483101560	483101560	483101560
Protection Functions	Overvoltage, overcurrent, overpower, overtemperature, and short circuit protection
Input Fuse	40A, 125VAC/250VAC fast-blow fuse
Communication Methods	Standard: RS232/485
Cooling Method	Fan Cooling
Operating Environment	Temperature 0-40℃, Relative Humidity 10%-90% (non-condensing)
