Product Details
Place of Origin: China
Brand Name: Topfer
Model Number: TF-YD11288T
Payment & Shipping Terms
Minimum Order Quantity: one set
Price: to be discussed
Packaging Details: wooden crate
Delivery Time: 5 to 6 weeks
Payment Terms: T/T
Supply Ability: 1 sets /40 days
Single Channel Power: |
60W/CH |
Dimensions: |
2050*900*1950/Customized By Customer |
Product Voltage Range: |
3-100V |
Energy Saving: |
More Than 85% |
Product Current Range: |
0.2A-5A |
Single Channel Power: |
60W/CH |
Dimensions: |
2050*900*1950/Customized By Customer |
Product Voltage Range: |
3-100V |
Energy Saving: |
More Than 85% |
Product Current Range: |
0.2A-5A |

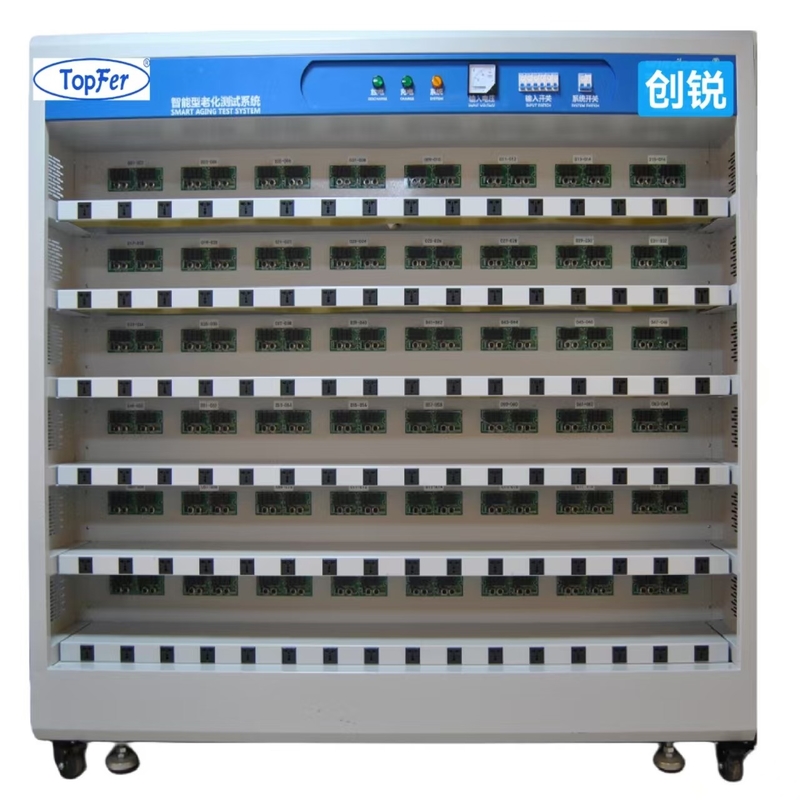

Mobile Power Supply Energy-Saving Aging System/Capable of realizing CC, CV, CR, CP, and LED five load modes
Application Range:
Mobile Power Supply
Functions and Advantages:
Software sets load parameters, real-time monitoring of output voltage, current, power, and other parameters.
CC and CV load selectable modes.
Real-time monitoring of the charging and discharging voltage, current, power, and other states of the mobile power supply.
In CC mode, load channels are paralleled to meet product power expansion.
The aging of product charging and discharging is achieved through bidirectional boost and buck conversion, achieving energy-saving and electricity-saving effects.
Editable switching time sequence, multiple load transformation functions.
Multifunctional adapter boards for different product connections, facilitating interface connection with various products.
Multiple structural options for aging chamber dimensions and appearance, solving aging issues for different products and various on-site installations.
Features include internal resistance smoke detection alarm, overtemperature alarm, leakage protection, etc.
Supports FCP, SCP, PD3.0+USBpps, PD2.0, QC2.0, QC3.0, QC4+, MTK PE2.0, D+D-, and other fast charging protocols for bidirectional fast charging aging tests.
Product area temperature monitoring function (optional).
Multiple load modules available for energy-saving and non-energy-saving options (optional).
Energy-saving conversion efficiency of over 85%.
Specification Table:
| Model | TF-YD11288T |
| Single Channel Power | 60W/CH |
| Number of Load Channels | 288CH |
| Load Voltage Range | 3-100V |
| Load Current Range | 0.2-5A/CH |
| Load Accuracy | ±(1%+0.05FS) |
| Number of Layers in Product Area | 6 |
| Height of Layers in Product Area | 170 |
| Width of Product Area | 380 |
| Load Module Selection | Electronic Load Type |
| Load Mode | CC+CV+CP |
| Temperature Control in Product Area | Product Area Temperature Control: Ambient to 60°C |
| Trolley Structure Material | Finely processed cold-rolled plate |
| Main Control Method | Computer Monitoring Power Supply Aging Supervision Software |
| Input Method of Power Supply Under Test | Universal Socket/Speaker Clamp/Customized by Customer |
| Interface Method of Power Supply Under Test | Multiple specifications of adapter fixture plates to choose from/Customized by customers |
| Exterior Dimensions(L*W*H) | 2050*900*1950/Customized by Customer |
