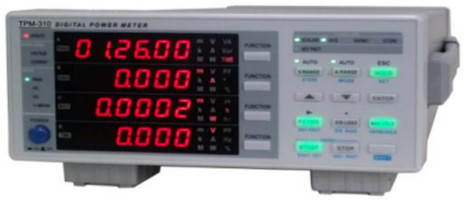

Programmable Total Harmonic Power Distortion Meter Precise Measurement 0.5V-600V

Name: Programmable Total Harmonic Power Distortion Meter Precise Measurement 0.5V-600V
Brand: Dongguan Chuangrui New Energy Co., Ltd
SKU: TPM-310
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Topfer

Model Number: TPM-310

Payment & Shipping Terms

Minimum Order Quantity: one set

Price: to be discussed

Packaging Details: wooden crate

Delivery Time: 1 to 2 weeks

Payment Terms: T/T

Supply Ability: 10 sets /20 days

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Programmable harmonic distortion meter, Precise harmonic distortion meter, 600V total harmonic distortion meter


Voltage:	0.5V-600V	Current:	0.05mA-40A
Measurement Bandwidth:	DC & 0.5Hz-2KHz

Voltage:	0.5V-600V
Current:	0.05mA-40A
Measurement Bandwidth:	DC & 0.5Hz-2KHz

Product Description

TPM-310 programmable harmonic power meter / precise measurement, high stability

Features:

Basic accuracy: 0.1 grade;
Frequency bandwidth: TPM-310: DC, 0.5Hz~2kHz;
Fast data update rate: 100ms;
Minimum current measurement: 0.05mA;
Large current measurement up to 40A;
Strong support for useful functions in production line quality assurance and product development;
Automatic range function in integral mode;
Simultaneous measurement of voltage, current, power, and harmonics;
Rich communication interfaces: RS485 and RS232, Ethernet (optional), compact half-rack size;
Standard PC software included can display values, harmonics, and other parameters.

Specification sheet:

Model	TPM-310
Input unit	Single-phase
Basic accuracy	0.1 grade, ±(0.1% of reading + 0.1% of range)
Measurement bandwidth	DC & 0.5Hz-2KHz
Input range	Voltage: 0.5V-600V Current: 0.05mA-40A (expandable with transformers)
Measurement parameters	Voltage U, current I, frequency f, active power P, reactive power Q, apparent power S, power factor PF, peak voltage U±PK, peak current I±PK, crest factor CF, energy accumulation E, harmonic distortion, harmonic components, etc.
Allowable overload	120% of the voltage and current range
Sampling rate	Sampling rate 8000 times per second (24-bit voltage and current simultaneous sampling)
Line filtering	500Hz
Harmonic measurement	Up to 50 times, accuracy class: A (I) level (Appendix D of GB/T14549-93)
Efficiency measurement	None
Display mode	Four-window LED display
Display update	Display refresh period: adjustable from 0.1 second to 5 seconds
Communication interface	Standard interfaces: USB, RS232/485; optional interface: Ethernet port
Working environment	Temperature: (0~40)°C Humidity: (20%~75%)RH Atmospheric pressure: (86~106)kPa
Instrument weight	2.8Kg
Total power consumption	＜10VA
Working power supply	AC 85V～265V,50/60Hz
Dimensions	223.5107.5380
Hole size	Width × Height 209*84
Precautions	1,The given parameters are the default range. If you require other measurement ranges, please specify at the time of order. 2,Extended functions are optional and not part of the standard configuration. Please declare your requirements when ordering. 3,For custom product ranges and functions, please refer to the product label and custom instructions. 4,If additional input modules are needed after receiving the product, they must be added by returning the product to the factory for modification. Please carefully select the required modules and options. If you have any questions, please contact Topfer Company.
