FINAL ASSEMBLY OF CDU COLD LIQUID DISTRIBUTION UNIT

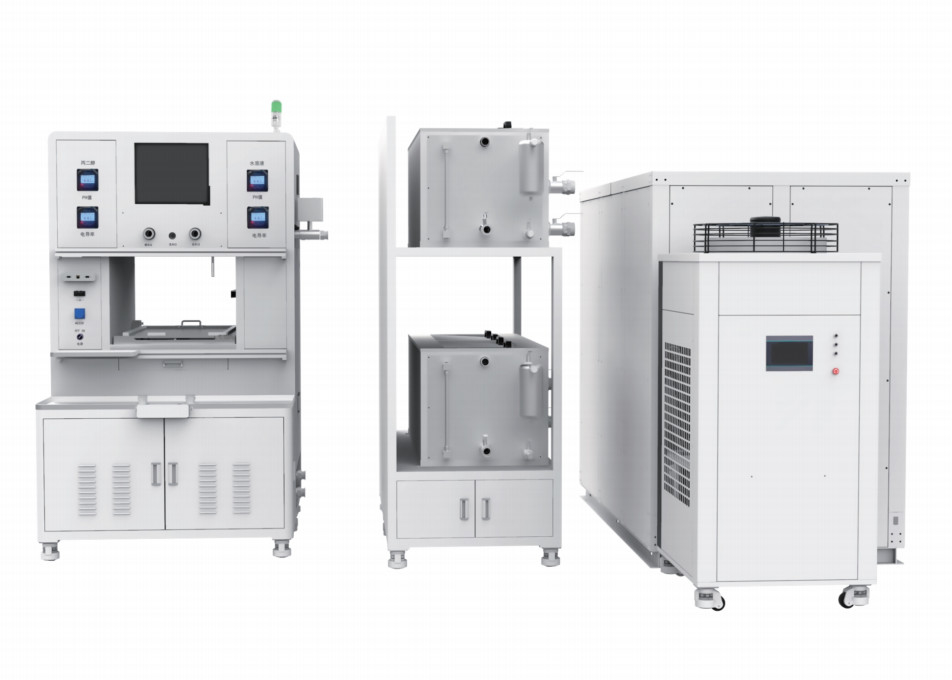

The Cold Liquid Distribution Unit (CDU) finished product testing system is designed for electrical component wire sequence detection, internal temperature sensor testing, and flow meter calibration of assembled CDU products. It also monitors liquid temperature, flow rate, inlet and outlet pressure, and pressure differential. By heating the liquid at a constant power using a thermostatic water tank and circulating it with the CDU, the system checks whether the liquid temperature remains constant.

The final assembly of a CDU (Cold Liquid Distribution Unit) involves several critical steps to ensure proper functionality, efficiency, and safety. A CDU is typically used in fueling stations to cool and dispense diesel fuel. Here’s an overview of the final assembly process:

Key Components

1. Tank: The main storage unit for the diesel fuel.
2. Pump: Moves the fuel from the tank to the dispenser.
3. Heater: Ensures the fuel remains at an optimal temperature for dispensing.
4. Control System: Manages the operation of the pump, heater, and other components.
5. Dispenser Nozzle: Delivers the fuel to the vehicle.
6. Piping and Hoses: Connects all components, ensuring smooth fuel flow.
7. Electrical Wiring: Powers the pump, heater, control system, and other electrical components.
8. Insulation: Keeps the fuel at the desired temperature.
9. Safety Features: Includes vents, pressure relief valves, and emergency shut-off systems.

Final Assembly Steps

1. Installation of the Tank:

   • Position the tank in its designated location, ensuring it is level and stable.
   • Secure the tank according to local regulations and manufacturer guidelines.

2. Connecting Piping and Hoses:

   • Install and connect the suction and discharge piping from the tank to the pump.
   • Ensure all connections are secure and leak-free using appropriate fittings and sealants.

3. Mounting the Pump:

   • Place the pump in its designated area, typically near the tank.
   • Connect the pump to the piping system, ensuring proper alignment and secure fastening.

4. Integrating the Heater:

   • Mount the heater unit close to the pump or directly on the piping.
   • Connect the heater to the control system and power supply.

5. Assembling the Control System:

   • Install the control panel in an accessible location.
   • Connect the control system to the pump, heater, and any other electronic components.
   • Test all connections and ensure the control system can operate all functions smoothly.

6. Installing the Dispenser Nozzle:

   • Attach the dispenser nozzle to the end of the delivery hose.
   • Ensure the nozzle is securely fastened and functional.

7. Wiring Electrical Components:

   • Run electrical wiring from the control system to the pump, heater, and other necessary components.
   • Ensure all electrical connections are secure and comply with local electrical codes.

8. Insulating the System:

   • Apply insulation to the tank, piping, and hoses to maintain fuel temperature.
   • Use appropriate insulation materials that are resistant to diesel fuel.

9. Implementing Safety Features:

   • Install safety vents and pressure relief valves to prevent overpressurization.
   • Ensure emergency shut-off systems are easily accessible and functional.

10. Final Testing and Calibration:

    • Conduct a series of tests to ensure all components are working correctly.
    • Check for leaks, proper fuel flow, and accurate temperature control.
    • Calibrate the control system as needed to ensure precise operation.

11. Documentation and Inspection:

    • Document all installation procedures and test results.
    • Conduct a final inspection to ensure compliance with all safety and operational standards.

Important Considerations

• Compliance: Ensure the assembly complies with local regulations and industry standards.
• Safety: Prioritize safety throughout the assembly process to prevent accidents and ensure safe operation.
• Quality Control: Perform thorough quality checks at each step to ensure reliability and longevity of the CDU.
• Training: Ensure that personnel involved in the assembly and operation are properly trained and certified.

By following these steps carefully, you can ensure that your CDU is assembled correctly, functioning efficiently, and ready for reliable operation.
