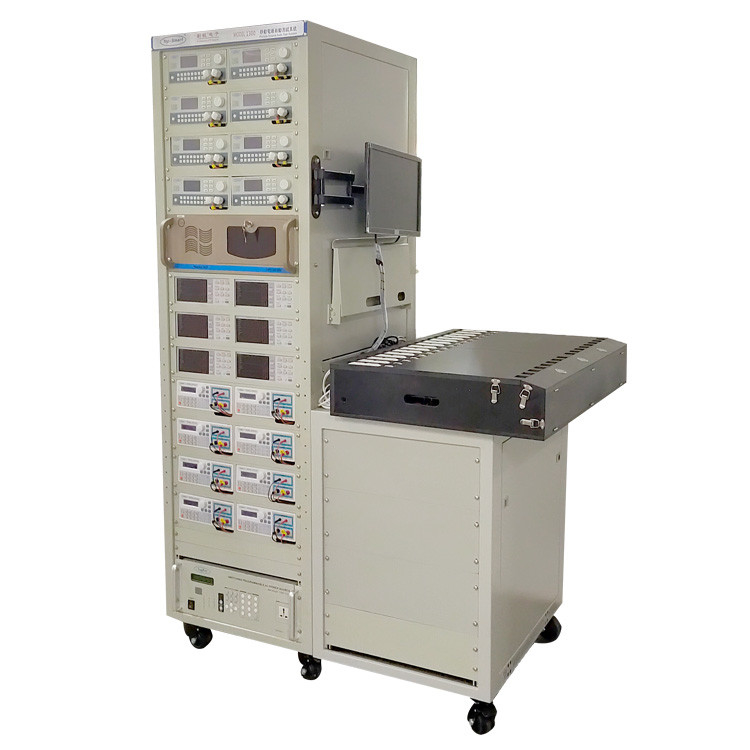

Test system Power Supply Automatic Testing System Fast Charging Charger Testing System High Voltage QC2.0/QC3.0
The mobile power supply testing system is open:
• An open hardware platform that allows for the addition or removal of various testing devices based on customer needs (including devices with GPIB, RS-232, USB interfaces)
• An open software platform that can be expanded to include new test items and functions according to customer testing requirements
• Supports multi-lane barcode pre-scanning and scanning during testing, enhancing overall testing speed;
• Supports Shop Floor manufacturing process control software.
The mobile power supply testing system has universality:
• Specifically designed for mobile power supplies and battery protection boards
• Particularly suitable for in-line production testing, with user-friendly system software features
• Suitable for comprehensive performance testing of mobile power supplies and battery protection board PCBAs
• Supports QC2.0, QC3.0, Type-C, PD, MTK fast charging and discharging tests, as well as wireless charging tests
• Complies with ENERGY STAR and IEC 62301 measurement requirements
• Supports Manufacturing Information System (ShopFloor) interface
• Optimizes display mode, allowing for any combination of hardware configurations
The mobile power supply testing system has high speed:
• The testing speed for various power supplies is more than double that of conventional testing systems;
• Editable test commands help improve testing speed;
• Conducts parallel barcode scanning (Bar Code Reader) during testing, greatly enhancing testing speed.
Top-Smart 1300 Mobile Power Supply Testing System Software:
• Complies with ENERGY STAR and IEC 62301 measurement requirements
• Good user experience, supports operation permission selection to prevent misoperations
• Test item editing function
• Test program editing function
• Test item/program management function
• Supports adding any device with GPIB, RS-232, USB interfaces
Top-Smart 1300 Powerful Data Processing Functions:
• Strong report analysis capabilities
• Comprehensive information management functions
• Directly generates Excel outputs
• Diverse graph generation functions
• Supports Manufacturing Information System (ShopFloor) interface
Test Items of Top-Smart 1300 Mobile Power Supply Testing System:
|
Input test
|
Charge test |
| Input voltage ramp |
Charge current test |
| Input freq. ramp |
Full charge testing |
| AC cycle drop out |
slow charge test |
| Input power supply distortion mode |
Slow Charge ID setting test |
| Input RMS current |
Discharge while charge test |
| input power |
Electricity indication test |
| Input power factor |
Simulation battery function |
| Input peak current test |
Wireless charging test |
| Output test |
Timing / dynamic test |
| DC output voltage |
Turn ON time |
| DC output current |
Rise time |
| Power up sequence |
Fall time |
| Power off sequence |
Hold-up time |
| Tracking |
Special test |
| Efficiency test |
LED lamp voltage and status test |
| Overshoot voltage test |
LED flashing frequency test |
| Peak-Peak noise |
Sleep mode test |
| Stability test |
D + / D-voltage test |
| Voltage regulation |
MCU communication and calibration tests |
| Current regulation |
Discharge test |
| Mixed effect test |
GPIB read/write |
| Protection test |
USB read/write |
| Short circuit test |
RS232 read / write |
| OV protection |
TTL signal control |
| UV protection |
Relay control |
| Charge protection test |
Bar code scan |
| Discharge protection test |
Extended measurement function |
| Overcurrent protection test |
|
| Fast charge test(Applicable to QC2.0, QC3.0 and other fast charge test) |
|
